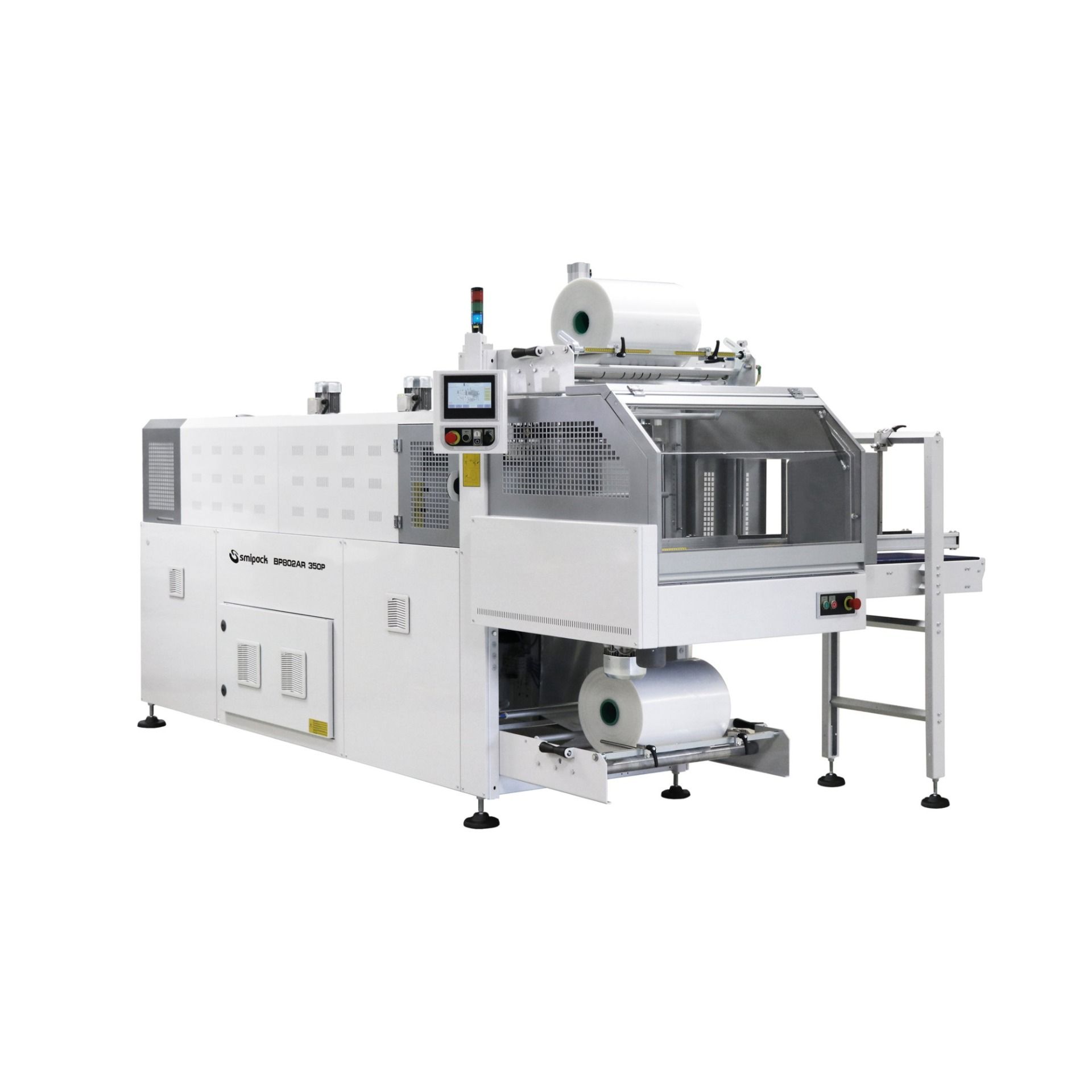

BP802AR 350P

Automatic with in-line infeed

The new series of monoblock semi-automatic and automatic shrinkwrappers with sealing bar BP are extremely versatile: they can pack various products, such as glass and PET bottles, cans, boxes, trays, jars, cartons of different sizes in a wide range of pack collations. They can be used in several industry segments, such as beverages, food, chemicals, wine and spirits, cosmetics, detergents, wood, textile, graphic etc.
Power supply 220 - 240 / 380 - 415 V, 3PH + PE / 3PH + N + PE, 50/60 Hz
Installed power 26900 W
Sealing bar 760mm
Maximum pack height 380 mm
Average output up to 20pack/min
Maximum size of film reel 750 x Ø 350 mmm
Machine size 3675 x 2500 mm h 2105 - 2265 mm
Working height 945 - 1105 mm
Machine / supports net weight 950Kg
Film: LDPE 20 - 100 µ
Air pressure 6 bar
